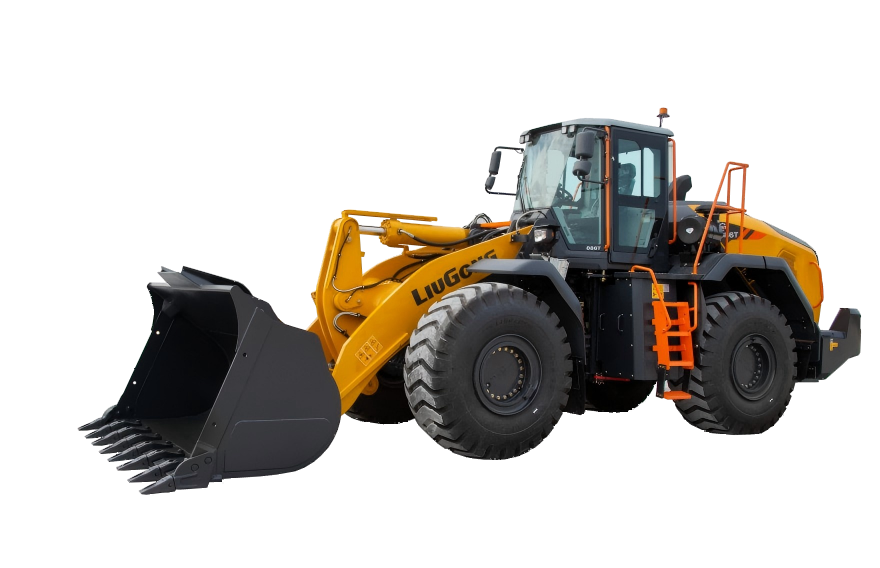

886T HST

Operating Weight

26,800 kg

Rated Load Capacity

8,800 kg

Rated Power

240 kW

  • Customized engine is perfectly matched power-train for high efficiency and low fuel consumption, bringing better TCO.
  • Hydrosatic drivetrain delivers higher transmission efficiency and saves more energy.
  • Intelligent deceleration braking system adjusts power distribution for travel and work to achieve high productivity.
  • The new closed-center load-sensing hydraulic system enables simultaneous movement of the boom and bucket, resulting in higher operational efficiency.
  • The electronically controlled intelligent fan conserves energy, reduces noise, and features reverse rotation for self-cleaning and dust removal.
  • Robust design of frame structure, wide spread hitch and wear-resistance bucket for maixmum durability.
  • The new cab of T-series, incorporating  enlarged driving space, increased legroom and wider front visibility, featuring with electric heating air suspension and ventilation seat, offers the operator a comfortable and safe driving experience.
  • Wider component access and handy arrangement of routine service points for easy maintenance.

886T HST (Tier 3/Stage III)

Operating Weight 26,800 kg
Rated Power 240 kW (322 hp / 326 ps) @ 2,000 rpm
Raise 5.8 s
Tipping Load-Full Turn 18,877 kg
Dump Clearance at Full Height Discharge 3,390 mm
Model Cummins L9
Length with Bucket Down 9,455 mm
Cab Height 3,630 mm
Bucket Capacities 3.5-8.0 m?
Light Material Bucket 7.2 m?
Standard Bucket Capacity 4.5 m?
Total Hydraulic Cycle Time 10.7 s
Maximum Travel Speed, fwd 38 km/h
Bucket Breakout Force 242 kN
Dump Reach at Full Height Discharg 1,223 mm
Aspiration Turbocharged & Air-to-air intercooled
Width over Tires 2,975 mm
Turning Radius, Outside of Tire 6,570 mm
GP Bucket 4.5 m?

※For reference only.
